Stainless Self-aligning Ball Bearings

Stainless Self-aligning Ball Bearings

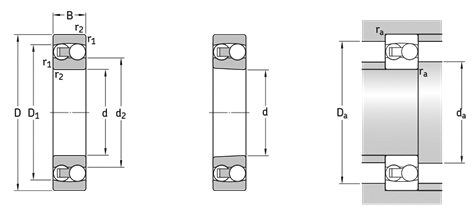

Drawing

Datasheet

Bearing No.	Dimensions			Mass	Bearing No.	Dimensions			Mass
Bearing No.	d	D	B		Bearing No.	d	D	B
–	mm	mm	mm	kg	–	mm	mm	mm	kg
1200	10	30	9	0.034	2200	10	30	14	0.047
1201	12	32	10	0.04	2201	12	32	14	0.053
1202	15	35	11	0.049	2202	15	35	14	0.06
1203	17	40	12	0.073	2203	17	40	16	0.088
1204	20	47	14	0.12	2204	20	47	18	0.14
1205	25	52	15	0.14	2205	25	52	18	0.16
1206	30	62	16	0.22	2206	30	62	20	0.26
1207	35	72	17	0.32	2207	35	72	23	0.4
1208	40	80	18	0.42	2208	40	80	23	0.51
1209	45	85	19	0.47	2209	45	85	23	0.55
1210	50	90	20	0.53	2210	50	90	23	0.6
1211	55	100	21	0.71	2211	55	100	25	0.81
1212	60	110	22	0.96	2212	60	110	28	1.1
1213	65	120	23	1.15	2213	65	120	31	1.45
1214	70	125	24	1.25	2214	70	125	31	1.5
1215	75	130	25	2	2215	75	130	31	1.6
1216	80	140	26	2.4	2216	80	140	33	2
1217	85	150	28	2.95	2217	85	150	36	2.5
1218	90	160	30	3.5	2218	90	160	40	3.4
1219	95	170	32	4.25	2219	95	170	43	4.1
1220	100	180	34	5	2220	100	180	46	5
1301	12	37	12	0.067	2301	12	37	17	0.095
1302	15	42	13	0.094	2302	15	42	17	0.12
1303	17	47	14	0.12	2303	17	47	19	0.16
1304	20	52	15	0.16	2304	20	52	21	0.22
1305	25	62	17	0.33	2305	25	62	24	0.34
1306	30	72	19	0.39	2306	30	72	27	0.61
1307	35	80	21	0.51	2307	35	80	31	0.68
1308	40	90	23	0.68	2308	40	90	33	0.93
1309	45	100	25	0.96	2309	45	100	36	1.4
1310	50	110	27	1.2	2310	50	110	40	1.9
1311	55	120	29	1.6	2311	55	120	43	2.4
1312	60	130	31	1.95	2312	60	130	46	2.6
1313	65	140	33	2.45	2313	65	140	48	3.6
1314	70	150	35	3	2314	70	150	51	3.9
1315	75	160	37	4.2	2315	75	160	55	4.7
1316	80	170	39	5	2316	80	170	58	6.1
1317	85	180	41	6	2317	85	180	60	7.05
1318	90	190	43	6.9	2318	90	190	64	8.45
1319	95	200	45	7.9	2319	95	200	67	9.8
1320	100	215	47	9.65	2320	100	215	73	12.5
